污点类型	解释(相当于做标签)
kubectl taint nodes node key=value:==NoSchedule==	添加effect类型污点，新的pod不能调度过来，==老的不影响==
kubectl taint nodes node key=value:==NoExecute==	添加effecf类型污点，新的pod不能调度过来，==老的被驱除==
kubectl taint nodes node key=value:==PreferNoSchedule==	会尝试将pod分配到该节点

污点、容忍度

手动创建deployment

1	[root@ceshi-130 ~]# kubectl create deployment nginx-dp --image=harbor.od.com/public/nginx:v1.7.9 -n kube-public

伸缩副本为2，两台node都存在nginx-dp-xxx的pod

[root@ceshi-130 ~]# kubectl scale --replicas=2 deployment/nginx-dp -n kube-public
[root@ceshi-130 ~]# kubectl get pods -n kube-public -o wide
NAME                        READY   STATUS    RESTARTS   AGE     IP           NODE                 NOMINATED NODE   READINESS GATES
nginx-dp-5dfc689474-wkfn9   1/1     Running   0          25s     172.7.21.4   ceshi-130.host.com   <none>           <none>
nginx-dp-5dfc689474-zbgnp   1/1     Running   0          3m10s   172.7.22.2   ceshi-131.host.com   <none>           <none>

比如我们现在就不想让pod运行在某个node上

输出 yaml格式

[root@ceshi-130 ~]# kubectl get deployment nginx-dp -o yaml -n kube-public > nginx-dp.yaml
apiVersion: extensions/v1beta1
kind: Deployment
metadata:
  annotations:
  labels:
    app: nginx-dp
  name: nginx-dp
  namespace: kube-public
spec:
  replicas: 2
  selector:
    matchLabels:
      app: nginx-dp
  template:
    metadata:
      labels:
        app: nginx-dp
    spec:
      containers:
      - image: harbor.od.com/public/nginx:v1.7.9
        imagePullPolicy: IfNotPresent
        name: nginx

伸缩一份，查看只有131节点存在，那就去130节点打污点

[root@ceshi-130 ~]# kubectl scale --replicas=1 deployment/nginx-dp -n kube-public
deployment.extensions/nginx-dp scaled
[root@ceshi-130 ~]# kubectl get pods -n kube-public -o wide
NAME                        READY   STATUS    RESTARTS   AGE   IP           NODE                 NOMINATED NODE   READINESS GATES
nginx-dp-5dfc689474-zbgnp   1/1     Running   0          11m   172.7.22.2   ceshi-131.host.com   <none>           <none>

==节点 130==
在130节点打污点

1	[root@ceshi-130 ~]# kubectl taint nodes ceshi-130.host.com defect=fat:NoSchedule

upload successful

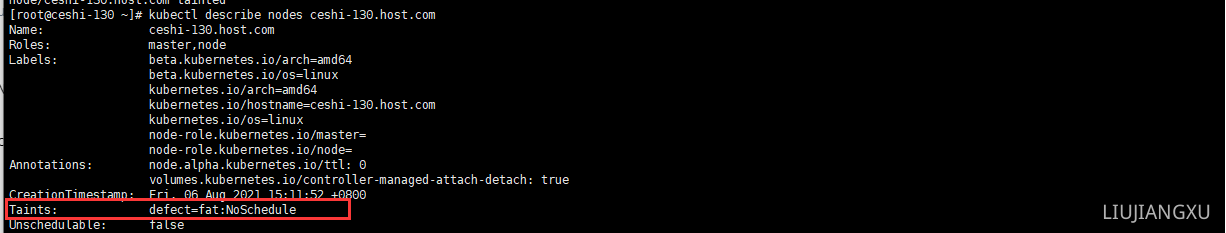

查看节点详细资源已经现在污点信息，此时不论将pod扩容几份pod都不会调度到130-node，因为130-node已经有污点新的pod不会在被调度

upload successful
tolerations：容忍度

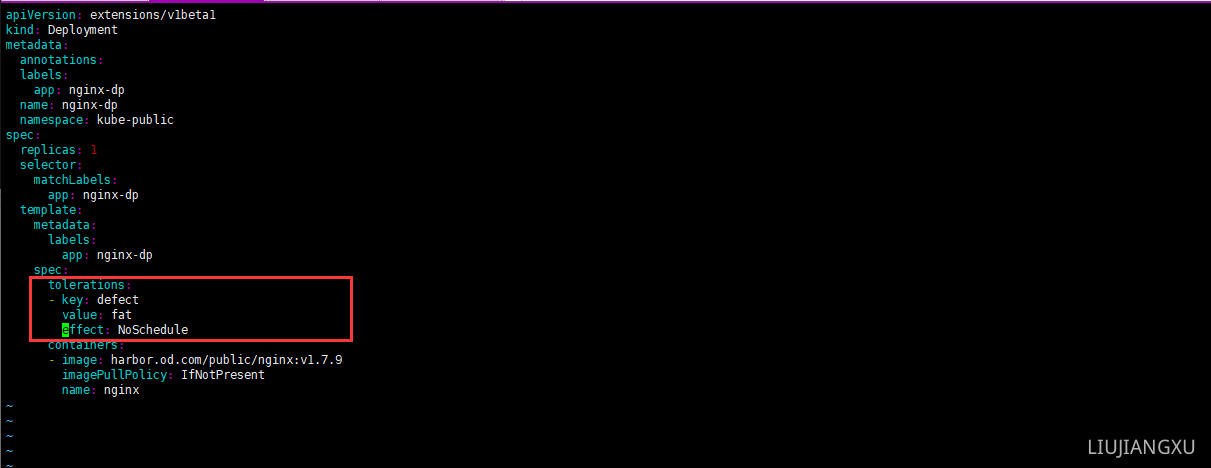

修改nginx-dp.yaml文件让他可以容忍污点（containers同一级对齐）

spec:
  tolerations:
  - key: defect
    value: fat
    effect: NoSchedule
  replicas: 1

upload successful

再次交付

1
2
3

[root@ceshi-130 ~]# kubectl apply -f nginx-dp.yaml
Warning: kubectl apply should be used on resource created by either kubectl create --save-config or kubectl apply
deployment.extensions/nginx-dp configured

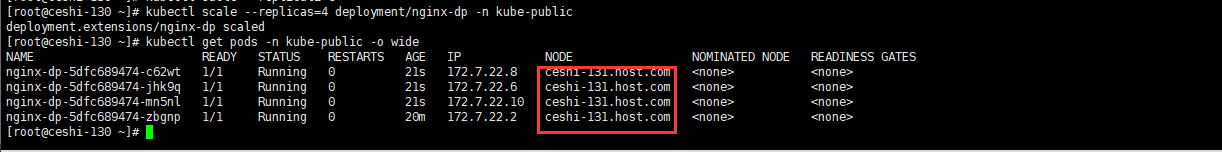

扩容4台后查看可以被调度到污点node，因为yaml文件配置是tolerations，意思是可以容忍污点

upload successful
可以将节点打多个污染

1 2	[root@ceshi-130 ~]# kubectl taint nodes ceshi-130.host.com cs=:NoSchedule [root@ceshi-130 ~]# kubectl taint nodes ceshi-130.host.com cf=:NoSchedule

yaml配置也可以配置多个容忍度key（同spec下级containers同级配置），==但是当node打污点为多个，yaml配置为一个时也不满足容忍度要求，同样不会被调度==

spec:
  tolerations:
  - key: cs
    effect: NoSchedule
  - key: cf
    effect: NoSchedule

nodeName

nodeName方式也是一种手动指定pod被调度到某个node的方法，比较简单直接
也是在spec下级和containers同级指定即可

1
2
3

spec:
      nodeName: ceshi-130.host.com
      containers:

两种方式简单来说：
前者是除了能容忍污点的pod会被调度进来，其他都不会被调度
后者是指定当前pod选择node，其他pod也会被调度到次node
