云原生程序特点
程序的配置，通过设置环境变量传递到容器内部（-e参数传递环境变量）
程序的配置，通过程序启动参数配置生效
程序的配置，通过集中在配置中心进行统一管理（configmap/集成配置平台apollo等）

监控k8s所需exporter插件

  • kube-state-metrics – 收集master&etcd等基本状态信息
  • node-exporter – 收集node信息
  • cadvisor – 收集docker容器内部使用资源信息
  • blackbox-exporte – 收集k8sdocker容器服务是否存活

kube-state-metrics（收集master&etcd等基本状态信息）

节点 130

下载镜像

1
2
3
[root@ceshi-132 ~]# docker pull quay.io/coreos/kube-state-metrics:v1.5.0
[root@ceshi-132 ~]# docker tag 91599517197a  harbor.od.com/public/kube-state-metrics:v1.5.0
[root@ceshi-132 ~]# docker push harbor.od.com/public/kube-state-metrics:v1.5.0

创建资源配置清单
[root@ceshi-132 k8s-yaml]# mkdir kube-state-metrics

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
61
62
63
64
65
66
67
68
69
70
71
72
73
74
75
76
77
78
79
80
81
82
83
84
85
86
87
88
89
90
[root@ceshi-132 kube-state-metrics]# vi rbac.yaml
apiVersion: v1
kind: ServiceAccount
metadata:
  labels:
    addonmanager.kubernetes.io/mode: Reconcile
    kubernetes.io/cluster-service: "true"
  name: kube-state-metrics
  namespace: kube-system
---
apiVersion: rbac.authorization.k8s.io/v1
kind: ClusterRole
metadata:
  labels:
    addonmanager.kubernetes.io/mode: Reconcile
    kubernetes.io/cluster-service: "true"
  name: kube-state-metrics
rules:
- apiGroups:
  - ""
  resources:
  - configmaps
  - secrets
  - nodes
  - pods
  - services
  - resourcequotas
  - replicationcontrollers
  - limitranges
  - persistentvolumeclaims
  - persistentvolumes
  - namespaces
  - endpoints
  verbs:
  - list
  - watch
- apiGroups:
  - policy
  resources:
  - poddisruptionbudgets
  verbs:
  - list
  - watch
- apiGroups:
  - extensions
  resources:
  - daemonsets
  - deployments
  - replicasets
  verbs:
  - list
  - watch
- apiGroups:
  - apps
  resources:
  - statefulsets
  verbs:
  - list
  - watch
- apiGroups:
  - batch
  resources:
  - cronjobs
  - jobs
  verbs:
  - list
  - watch
- apiGroups:
  - autoscaling
  resources:
  - horizontalpodautoscalers
  verbs:
  - list
  - watch
---
apiVersion: rbac.authorization.k8s.io/v1
kind: ClusterRoleBinding
metadata:
  labels:
    addonmanager.kubernetes.io/mode: Reconcile
    kubernetes.io/cluster-service: "true"
  name: kube-state-metrics
roleRef:
  apiGroup: rbac.authorization.k8s.io
  kind: ClusterRole
  name: kube-state-metrics
subjects:
- kind: ServiceAccount
  name: kube-state-metrics
  namespace: kube-system
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
[root@ceshi-132 kube-state-metrics]# vi dp.yaml
apiVersion: extensions/v1beta1
kind: Deployment
metadata:
  annotations:
    deployment.kubernetes.io/revision: "2"
  labels:
    grafanak8sapp: "true"
    app: kube-state-metrics
  name: kube-state-metrics
  namespace: kube-system
spec:
  selector:
    matchLabels:
      grafanak8sapp: "true"
      app: kube-state-metrics
  strategy:
    rollingUpdate:
      maxSurge: 25%
      maxUnavailable: 25%
    type: RollingUpdate
  template:
    metadata:
      labels:
        grafanak8sapp: "true"
        app: kube-state-metrics
    spec:
      containers:
      - name: kube-state-metrics
        image: harbor.od.com/public/kube-state-metrics:v1.5.0
        imagePullPolicy: IfNotPresent
        ports:
        - containerPort: 8080
          name: http-metrics
          protocol: TCP
        readinessProbe:     #就绪性探针
          failureThreshold: 3
          httpGet:
            path: /healthz
            port: 8080
            scheme: HTTP
          initialDelaySeconds: 5
          periodSeconds: 10
          successThreshold: 1
          timeoutSeconds: 5
      serviceAccountName: kube-state-metrics

交付

1
2
3
4
5
6
[root@ceshi-130 ~]# kubectl apply -f http://k8s-yaml.od.com/kube-state-metrics/rbac.yaml
serviceaccount/kube-state-metrics created
clusterrole.rbac.authorization.k8s.io/kube-state-metrics created
clusterrolebinding.rbac.authorization.k8s.io/kube-state-metrics created
[root@ceshi-130 ~]# kubectl apply -f http://k8s-yaml.od.com/kube-state-metrics/dp.yaml
deployment.extensions/kube-state-metrics created

curl探测返回ok为正常

1
2
3
4
5
[root@ceshi-130 ~]# kubectl get pods -n kube-system -o wide
NAME                                    READY   STATUS    RESTARTS   AGE   IP           NODE                 NOMINATED NODE   READINESS GATES
kube-state-metrics-8669f776c6-sv24d     1/1     Running   0          42s   172.7.21.2   ceshi-130.host.com   <none>           <none>
[root@ceshi-130 ~]# curl 172.7.21.2:8080/healthz
ok

node-exporter（收集node信息）

下载镜像

1
2
3
4
[root@ceshi-132 ~]# docker pull prom/node-exporter:v0.15.0
[root@ceshi-132 ~]# docker tag 12d51ffa2b22 harbor.od.com/public/node-exporter:v0.15.0
[root@ceshi-132 ~]# docker push harbor.od.com/public/node-exporter:v0.15.0
The push refers to repository [harbor.od.com/public/node-exporter]

创建资源清单

1
2
[root@ceshi-132 k8s-yaml]# mkdir node-exporter
[root@ceshi-132 k8s-yaml]# cd node-exporter/

node-exporter每个节点都必须有所以类型为DaemonSet

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
[root@ceshi-132 node-exporter]# vi ds.yaml
kind: DaemonSet
apiVersion: extensions/v1beta1
metadata:
  name: node-exporter
  namespace: kube-system
  labels:
    daemon: "node-exporter"
    grafanak8sapp: "true"
spec:
  selector:
    matchLabels:
      daemon: "node-exporter"
      grafanak8sapp: "true"
  template:
    metadata:
      name: node-exporter
      labels:
        daemon: "node-exporter"
        grafanak8sapp: "true"
    spec:
      volumes:
      - name: proc
        hostPath:
          path: /proc
          type: ""
      - name: sys
        hostPath:
          path: /sys
          type: ""
      containers:
      - name: node-exporter
        image: harbor.od.com/public/node-exporter:v0.15.0
        imagePullPolicy: IfNotPresent
        args:
        - --path.procfs=/host_proc
        - --path.sysfs=/host_sys
        ports:
        - name: node-exporter
          hostPort: 9100
          containerPort: 9100
          protocol: TCP
        volumeMounts:
        - name: sys
          readOnly: true
          mountPath: /host_sys
        - name: proc
          readOnly: true
          mountPath: /host_proc
      hostNetwork: true			宿主机共享网络

交付

1
2
[root@ceshi-130 ~]# kubectl apply -f http://k8s-yaml.od.com/node-exporter/ds.yaml
daemonset.extensions/node-exporter created

交付后可以看到IP为宿主机因为ds配置为 hostNetwork: true 和宿主机共享网络空间

1
2
3
4
5
6
7
8
[root@ceshi-130 ~]# netstat -tnlp | grep 9100
tcp        0      0 0.0.0.0:9100            0.0.0.0:*               LISTEN      127117/node_exporte

[root@ceshi-130 ~]# kubectl get pods -n kube-system -o wide
NAME                                    READY   STATUS    RESTARTS   AGE   IP            NODE                 NOMINATED NODE   READINESS GATES
kube-state-metrics-8669f776c6-sv24d     1/1     Running   0          14m   172.7.21.2    ceshi-130.host.com   <none>           <none>
node-exporter-22zzl                     1/1     Running   0          57s   10.1.133.96   ceshi-131.host.com   <none>           <none>
node-exporter-lbh9f                     1/1     Running   0          57s   10.1.133.95   ceshi-130.host.com   <none>           <none>

cadvisor（收集docker容器内部使用资源信息）

下载镜像

1
2
3
[root@ceshi-132 ~]# docker pull google/cadvisor:v0.28.3
[root@ceshi-132 ~]# docker tag 75f88e3ec333 harbor.od.com/public/cadvisor:v0.28.3
[root@ceshi-132 ~]# docker push harbor.od.com/public/cadvisor:v0.28.3

创建资源配置

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
61
62
63
[root@ceshi-132 cadvisor]# vi ds.yaml
apiVersion: apps/v1
kind: DaemonSet
metadata:
  name: cadvisor
  namespace: kube-system
  labels:
    app: cadvisor
spec:
  selector:
    matchLabels:
      name: cadvisor
  template:
    metadata:
      labels:
        name: cadvisor
    spec:
      hostNetwork: true						共享宿主机网络空间
      tolerations:							容忍
      - key: node-role.kubernetes.io/master 如果是master节点
        effect: NoSchedule					影响：不调度
      containers:
      - name: cadvisor
        image: harbor.od.com/public/cadvisor:v0.28.3
        imagePullPolicy: IfNotPresent
        volumeMounts:
        - name: rootfs
          mountPath: /rootfs
          readOnly: true
        - name: var-run
          mountPath: /var/run
        - name: sys
          mountPath: /sys
          readOnly: true
        - name: docker
          mountPath: /var/lib/docker
          readOnly: true
        ports:
          - name: http
            containerPort: 4194
            protocol: TCP
        readinessProbe:
          tcpSocket:
            port: 4194
          initialDelaySeconds: 5
          periodSeconds: 10
        args:
          - --housekeeping_interval=10s
          - --port=4194
      terminationGracePeriodSeconds: 30
      volumes:
      - name: rootfs
        hostPath:
          path: /
      - name: var-run
        hostPath:
          path: /var/run
      - name: sys
        hostPath:
          path: /sys
      - name: docker
        hostPath:
          path: /data/docker

交付

1
2
[root@ceshi-130 ~]# kubectl apply -f http://k8s-yaml.od.com/cadvisor/ds.yaml
daemonset.apps/cadvisor created

===============================================================================

污点类型 解释(相当于做标签)
kubectl taint nodes node key=value:==NoSchedule== 添加effect类型污点，新的pod不能调度过来，==老的不影响==
kubectl taint nodes node key=value:==NoExecute== 添加effecf类型污点，新的pod不能调度过来，==老的被驱除==
kubectl taint nodes node key=value:PreferNoSchedule 会尝试将pod分配到该节点

打污点

1
[root@ceshi-130 ~]# kubectl taint nodes ceshi-130.host.com node-role.kubernetes.io/master:NoSchedule

删除污点

1
[root@ceshi-130 ~]# kubectl taint nodes ceshi-130.host.com node-role.kubernetes.io/master-

yaml匹配污点如上面yaml所示

1
2
3
4
tolerations:  #containers同级
    - key: "key1"          #能容忍的污点key
      value: "value1"      #值
      effect: "NoExecute"  #effect策略，见上面

人为调度K8S调度三种方法：

类型 解释
污点、容忍度 (1)污点：运算节点node上的污点 (2) 容忍度：pod是否能容忍污点
nodeName 让pod运行在指定node上
nodeSelector 通过标签选择器，让pod运行在指定一类的node上

blackbox-exporter（收集k8sdocker容器服务是否存活）

下载镜像

1
2
3
[root@ceshi-132 ~]# docker pull prom/blackbox-exporter:v0.15.1
[root@ceshi-132 ~]# docker tag 81b70b6158be harbor.od.com/public/blackbox-exporter:v0.15.1
[root@ceshi-132 ~]# docker push harbor.od.com/public/blackbox-exporter:v0.15.1

创建资源清单

1
2
[root@ceshi-132 ~]# cd /data/k8s-yaml/
[root@ceshi-132 k8s-yaml]# mkdir blackbox-exporter
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
[root@ceshi-132 blackbox-exporter]# cat cm.yaml
apiVersion: v1
kind: ConfigMap
metadata:
  labels:
    app: blackbox-exporter
  name: blackbox-exporter
  namespace: kube-system
data:
  blackbox.yml: |-
    modules:
      http_2xx:
        prober: http
        timeout: 2s
        http:
          valid_http_versions: ["HTTP/1.1", "HTTP/2"]
          valid_status_codes: [200,301,302]
          method: GET
          preferred_ip_protocol: "ip4"
      tcp_connect:
        prober: tcp
        timeout: 2s
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
[root@ceshi-132 blackbox-exporter]# cat dp.yaml
kind: Deployment
apiVersion: extensions/v1beta1
metadata:
  name: blackbox-exporter
  namespace: kube-system
  labels:
    app: blackbox-exporter
  annotations:
    deployment.kubernetes.io/revision: 1
spec:
  replicas: 1
  selector:
    matchLabels:
      app: blackbox-exporter
  template:
    metadata:
      labels:
        app: blackbox-exporter
    spec:
      volumes:
      - name: config
        configMap:
          name: blackbox-exporter
          defaultMode: 420
      containers:
      - name: blackbox-exporter
        image: harbor.od.com/public/blackbox-exporter:v0.15.1
        imagePullPolicy: IfNotPresent
        args:
        - --config.file=/etc/blackbox_exporter/blackbox.yml
        - --log.level=info
        - --web.listen-address=:9115
        ports:
        - name: blackbox-port
          containerPort: 9115
          protocol: TCP
        resources:
          limits:
            cpu: 200m
            memory: 256Mi
          requests:
            cpu: 100m
            memory: 50Mi
        volumeMounts:
        - name: config
          mountPath: /etc/blackbox_exporter
        readinessProbe:
          tcpSocket:
            port: 9115
          initialDelaySeconds: 5
          timeoutSeconds: 5
          periodSeconds: 10
          successThreshold: 1
          failureThreshold: 3
1
2
3
4
5
6
7
8
9
10
11
12
13
[root@ceshi-132 blackbox-exporter]# cat svc.yaml
kind: Service
apiVersion: v1
metadata:
  name: blackbox-exporter
  namespace: kube-system
spec:
  selector:
    app: blackbox-exporter
  ports:
    - name: blackbox-port
      protocol: TCP
      port: 9115

出现ingress host需要解析域名

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
[root@ceshi-132 blackbox-exporter]# cat ingress.yaml
apiVersion: extensions/v1beta1
kind: Ingress
metadata:
  name: blackbox-exporter
  namespace: kube-system
spec:
  rules:
  - host: blackbox.od.com
    http:
      paths:
      - path: /
        backend:
          serviceName: blackbox-exporter
          servicePort: blackbox-port

交付

1
2
3
4
5
6
7
8
[root@ceshi-130 ~]# kubectl apply -f http://k8s-yaml.od.com/blackbox-exporter/cm.yaml
configmap/blackbox-exporter created
[root@ceshi-130 ~]# kubectl apply -f http://k8s-yaml.od.com/blackbox-exporter/dp.yaml
deployment.extensions/blackbox-exporter created
[root@ceshi-130 ~]# kubectl apply -f http://k8s-yaml.od.com/blackbox-exporter/svc.yaml
service/blackbox-exporter created
[root@ceshi-130 ~]# kubectl apply -f http://k8s-yaml.od.com/blackbox-exporter/ingress.yaml
ingress.extensions/blackbox-exporter created

prometheus-server

下载镜像

1
2
3
[root@ceshi-132 ~]# docker pull prom/prometheus:v2.14.0
[root@ceshi-132 ~]# docker tag 7317640d555e harbor.od.com/public/prometheus:v2.14.0
[root@ceshi-132 ~]# docker push harbor.od.com/public/prometheus:v2.14.0

创建资源配置清单

1
2
[root@ceshi-132 data]# cd /data/k8s-yaml/
[root@ceshi-132 k8s-yaml]# mkdir prometheus
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
[root@ceshi-132 prometheus]# cat rbac.yaml
apiVersion: v1
kind: ServiceAccount
metadata:
  labels:
    addonmanager.kubernetes.io/mode: Reconcile
    kubernetes.io/cluster-service: "true"
  name: prometheus
  namespace: infra
---
apiVersion: rbac.authorization.k8s.io/v1
kind: ClusterRole
metadata:
  labels:
    addonmanager.kubernetes.io/mode: Reconcile
    kubernetes.io/cluster-service: "true"
  name: prometheus
rules:
- apiGroups:
  - ""
  resources:
  - nodes
  - nodes/metrics
  - services
  - endpoints
  - pods
  verbs:
  - get
  - list
  - watch
- apiGroups:
  - ""
  resources:
  - configmaps
  verbs:
  - get
- nonResourceURLs:
  - /metrics
  verbs:
  - get
---
apiVersion: rbac.authorization.k8s.io/v1
kind: ClusterRoleBinding
metadata:
  labels:
    addonmanager.kubernetes.io/mode: Reconcile
    kubernetes.io/cluster-service: "true"
  name: prometheus
roleRef:
  apiGroup: rbac.authorization.k8s.io
  kind: ClusterRole
  name: prometheus
subjects:
- kind: ServiceAccount
  name: prometheus
  namespace: infra
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
61
62
63
[root@ceshi-132 prometheus]# cat dp.yaml
apiVersion: extensions/v1beta1
kind: Deployment
metadata:
  annotations:
    deployment.kubernetes.io/revision: "5"
  labels:
    name: prometheus
  name: prometheus
  namespace: infra
spec:
  progressDeadlineSeconds: 600
  replicas: 1
  revisionHistoryLimit: 7
  selector:
    matchLabels:
      app: prometheus
  strategy:
    rollingUpdate:
      maxSurge: 1
      maxUnavailable: 1
    type: RollingUpdate
  template:
    metadata:
      labels:
        app: prometheus
    spec:
      nodeName： ceshi-130.host.com	 手动指定pod会被调度的node
      containers:
      - name: prometheus
        image: harbor.od.com/public/prometheus:v2.14.0
        imagePullPolicy: IfNotPresent
        command:
        - /bin/prometheus
        args:
        - --config.file=/data/etc/prometheus.yml
        - --storage.tsdb.path=/data/prom-db
        - --storage.tsdb.min-block-duration=10m
        - --storage.tsdb.retention=72h
        - --web.enable-lifecycle
        ports:
        - containerPort: 9090
          protocol: TCP
        volumeMounts:
        - mountPath: /data
          name: data
        resources:			限制容器资源
          requests:			容器启动时申请
            cpu: "1000m"	1c（毫核） 1000m=1c
            memory: "1.5Gi"
          limits:			当容器资源使用达到阈值会被kill掉
            cpu: "2000m"	cpu使用不能超过2c
            memory: "3Gi"	内存不能超过3G
      imagePullSecrets:
      - name: harbor
      securityContext:
        runAsUser: 0
      serviceAccountName: prometheus
      volumes:
      - name: data
        nfs:
          server: 10.1.133.97
          path: /data/nfsvolume/prometheus

创建挂载目录

1
2
[root@ceshi-132 prometheus]# cd /data/nfsvolume/
[root@ceshi-132 nfsvolume]# mkdir prometheus/{etc,prom-db}

拷贝证书 因为prometheus要自动发现监控所以必须和K8S-apiserver交互

1
2
3
4
[root@ceshi-132 prometheus]# cd etc/
[root@ceshi-132 etc]# cp /opt/certs/ca.pem .
[root@ceshi-132 etc]# cp /opt/certs/client.pem .
[root@ceshi-132 etc]# cp /opt/certs/client-key.pem .

创建prometheus配置文件prometheus.yml

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
61
62
63
64
65
66
67
68
69
70
71
72
73
74
75
76
77
78
79
80
81
82
83
84
85
86
87
88
89
90
91
92
93
94
95
96
97
98
99
100
101
102
103
104
105
106
107
108
109
110
111
112
113
114
115
116
117
118
119
120
121
122
123
124
125
126
127
128
129
130
131
132
133
134
135
136
137
138
139
140
141
142
143
144
145
146
147
148
149
150
151
152
153
154
155
156
157
158
159
160
161
162
163
164
165
166
167
168
169
170
[root@ceshi-132 etc]# vi prometheus.yml
global:
  scrape_interval:     15s
  evaluation_interval: 15s
scrape_configs:
- job_name: 'etcd'
  tls_config:
    ca_file: /data/etc/ca.pem
    cert_file: /data/etc/client.pem
    key_file: /data/etc/client-key.pem
  scheme: https
  static_configs:
  - targets:
    - '10.1.133.93:2379'
    - '10.1.133.95:2379'
    - '10.1.133.96:2379'
- job_name: 'kubernetes-apiservers'
  kubernetes_sd_configs:
  - role: endpoints
  scheme: https
  tls_config:
    ca_file: /var/run/secrets/kubernetes.io/serviceaccount/ca.crt
  bearer_token_file: /var/run/secrets/kubernetes.io/serviceaccount/token
  relabel_configs:
  - source_labels: [__meta_kubernetes_namespace, __meta_kubernetes_service_name, __meta_kubernetes_endpoint_port_name]
    action: keep
    regex: default;kubernetes;https
- job_name: 'kubernetes-pods'
  kubernetes_sd_configs:
  - role: pod
  relabel_configs:
  - source_labels: [__meta_kubernetes_pod_annotation_prometheus_io_scrape]
    action: keep
    regex: true
  - source_labels: [__meta_kubernetes_pod_annotation_prometheus_io_path]
    action: replace
    target_label: __metrics_path__
    regex: (.+)
  - source_labels: [__address__, __meta_kubernetes_pod_annotation_prometheus_io_port]
    action: replace
    regex: ([^:]+)(?::\d+)?;(\d+)
    replacement: $1:$2
    target_label: __address__
  - action: labelmap
    regex: __meta_kubernetes_pod_label_(.+)
  - source_labels: [__meta_kubernetes_namespace]
    action: replace
    target_label: kubernetes_namespace
  - source_labels: [__meta_kubernetes_pod_name]
    action: replace
    target_label: kubernetes_pod_name
- job_name: 'kubernetes-kubelet'
  kubernetes_sd_configs:
  - role: node
  relabel_configs:
  - action: labelmap
    regex: __meta_kubernetes_node_label_(.+)
  - source_labels: [__meta_kubernetes_node_name]
    regex: (.+)
    target_label: __address__
    replacement: ${1}:10255
- job_name: 'kubernetes-cadvisor'
  kubernetes_sd_configs:
  - role: node
  relabel_configs:
  - action: labelmap
    regex: __meta_kubernetes_node_label_(.+)
  - source_labels: [__meta_kubernetes_node_name]
    regex: (.+)
    target_label: __address__
    replacement: ${1}:4194
- job_name: 'kubernetes-kube-state'
  kubernetes_sd_configs:
  - role: pod
  relabel_configs:
  - action: labelmap
    regex: __meta_kubernetes_pod_label_(.+)
  - source_labels: [__meta_kubernetes_namespace]
    action: replace
    target_label: kubernetes_namespace
  - source_labels: [__meta_kubernetes_pod_name]
    action: replace
    target_label: kubernetes_pod_name
  - source_labels: [__meta_kubernetes_pod_label_grafanak8sapp]
    regex: .*true.*
    action: keep
  - source_labels: ['__meta_kubernetes_pod_label_daemon', '__meta_kubernetes_pod_node_name']
    regex: 'node-exporter;(.*)'
    action: replace
    target_label: nodename
- job_name: 'blackbox_http_pod_probe'
  metrics_path: /probe
  kubernetes_sd_configs:
  - role: pod
  params:
    module: [http_2xx]
  relabel_configs:
  - source_labels: [__meta_kubernetes_pod_annotation_blackbox_scheme]
    action: keep
    regex: http
  - source_labels: [__address__, __meta_kubernetes_pod_annotation_blackbox_port,  __meta_kubernetes_pod_annotation_blackbox_path]
    action: replace
    regex: ([^:]+)(?::\d+)?;(\d+);(.+)
    replacement: $1:$2$3
    target_label: __param_target
  - action: replace
    target_label: __address__
    replacement: blackbox-exporter.kube-system:9115
  - source_labels: [__param_target]
    target_label: instance
  - action: labelmap
    regex: __meta_kubernetes_pod_label_(.+)
  - source_labels: [__meta_kubernetes_namespace]
    action: replace
    target_label: kubernetes_namespace
  - source_labels: [__meta_kubernetes_pod_name]
    action: replace
    target_label: kubernetes_pod_name
- job_name: 'blackbox_tcp_pod_probe'
  metrics_path: /probe
  kubernetes_sd_configs:
  - role: pod
  params:
    module: [tcp_connect]
  relabel_configs:
  - source_labels: [__meta_kubernetes_pod_annotation_blackbox_scheme]
    action: keep
    regex: tcp
  - source_labels: [__address__, __meta_kubernetes_pod_annotation_blackbox_port]
    action: replace
    regex: ([^:]+)(?::\d+)?;(\d+)
    replacement: $1:$2
    target_label: __param_target
  - action: replace
    target_label: __address__
    replacement: blackbox-exporter.kube-system:9115
  - source_labels: [__param_target]
    target_label: instance
  - action: labelmap
    regex: __meta_kubernetes_pod_label_(.+)
  - source_labels: [__meta_kubernetes_namespace]
    action: replace
    target_label: kubernetes_namespace
  - source_labels: [__meta_kubernetes_pod_name]
    action: replace
    target_label: kubernetes_pod_name
- job_name: 'traefik'
  kubernetes_sd_configs:
  - role: pod
  relabel_configs:
  - source_labels: [__meta_kubernetes_pod_annotation_prometheus_io_scheme]
    action: keep
    regex: traefik
  - source_labels: [__meta_kubernetes_pod_annotation_prometheus_io_path]
    action: replace
    target_label: __metrics_path__
    regex: (.+)
  - source_labels: [__address__, __meta_kubernetes_pod_annotation_prometheus_io_port]
    action: replace
    regex: ([^:]+)(?::\d+)?;(\d+)
    replacement: $1:$2
    target_label: __address__
  - action: labelmap
    regex: __meta_kubernetes_pod_label_(.+)
  - source_labels: [__meta_kubernetes_namespace]
    action: replace
    target_label: kubernetes_namespace
  - source_labels: [__meta_kubernetes_pod_name]
    action: replace
    target_label: kubernetes_pod_name
1
2
3
4
5
6
7
8
9
10
11
12
13
[root@ceshi-132 prometheus]# cat svc.yaml
apiVersion: v1
kind: Service
metadata:
  name: prometheus
  namespace: infra
spec:
  ports:
  - port: 9090
    protocol: TCP
    targetPort: 9090
  selector:
    app: prometheus
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
[root@ceshi-132 prometheus]# cat ingress.yaml
apiVersion: extensions/v1beta1
kind: Ingress
metadata:
  annotations:
    kubernetes.io/ingress.class: traefik
  name: prometheus
  namespace: infra
spec:
  rules:
  - host: prometheus.od.com
    http:
      paths:
      - path: /
        backend:
          serviceName: prometheus
          servicePort: 9090

交付

1
2
3
4
5
6
7
8
9
10
[root@ceshi-130 ~]# kubectl apply -f http://k8s-yaml.od.com/prometheus/rbac.yaml
serviceaccount/prometheus created
clusterrole.rbac.authorization.k8s.io/prometheus created
clusterrolebinding.rbac.authorization.k8s.io/prometheus created
[root@ceshi-130 ~]# kubectl apply -f http://k8s-yaml.od.com/prometheus/dp.yaml
deployment.extensions/prometheus created
[root@ceshi-130 ~]# kubectl apply -f http://k8s-yaml.od.com/prometheus/svc.yaml
service/prometheus created
[root@ceshi-130 ~]# kubectl apply -f http://k8s-yaml.od.com/prometheus/ingress.yaml
ingress.extensions/prometheus created

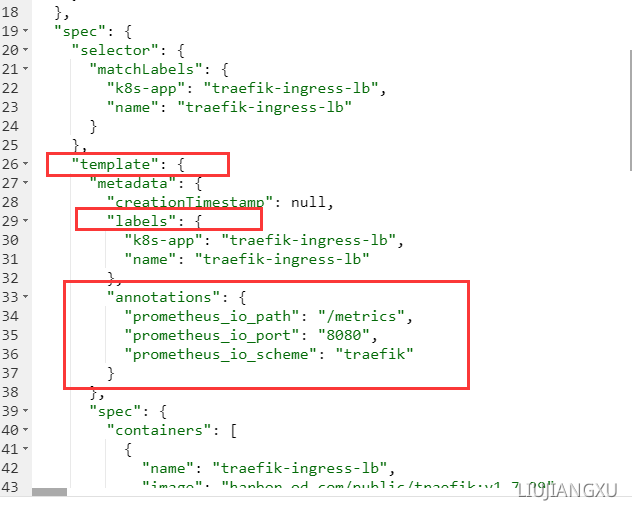

增加traefik监控项在template下级labels同级添加annotations,重启pod

1
2
3
4
5
"annotations": {
  "prometheus_io_scheme": "traefik",
  "prometheus_io_path": "/metrics",
  "prometheus_io_port": "8080"
}

upload successful
blackbox 探测服务存活性
prometheus通过blackbox来检测业务得存活性，不是直接获取

==TCP==

1
2
3
4

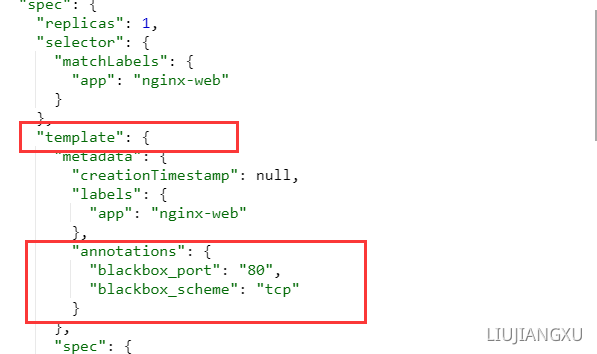

"annotations": {
  "blackbox_port": "80",
  "blackbox_scheme": "tcp"
}

==HTTP==

1
2
3
4
5
"annotations": {
  "blackbox_path": "/", （绝对路径后缀）
  "blackbox_port": "8080",
  "blackbox_scheme": "http"
}

==JVM==

1
2
3
4
5

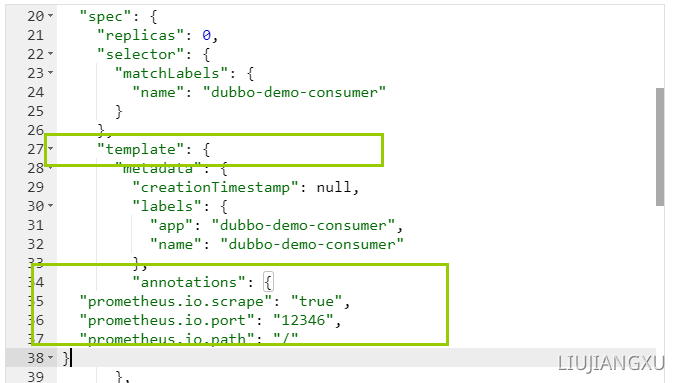

"annotations": {
  "prometheus.io.scrape": "true",
  "prometheus.io.port": "12346",
  "prometheus.io.path": "/"
}

upload successful

upload successful

grafana

下载镜像

1
2
3
[root@ceshi-132 ~]# docker pull grafana/grafana:5.4.2
[root@ceshi-132 ~]# docker tag 6f18ddf9e552 harbor.od.com/public/grafana:v5.4.2
[root@ceshi-132 ~]# docker push harbor.od.com/public/grafana:v5.4.2

创建资源配置清单

1
[root@ceshi-132 k8s-yaml]# mkdir /data/k8s-yaml/grafana/
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
[root@ceshi-132 grafana]# cat rbac.yaml
apiVersion: rbac.authorization.k8s.io/v1
kind: ClusterRole
metadata:
  labels:
    addonmanager.kubernetes.io/mode: Reconcile
    kubernetes.io/cluster-service: "true"
  name: grafana
rules:
- apiGroups:
  - "*"
  resources:
  - namespaces
  - deployments
  - pods
  verbs:
  - get
  - list
  - watch
---
apiVersion: rbac.authorization.k8s.io/v1
kind: ClusterRoleBinding
metadata:
  labels:
    addonmanager.kubernetes.io/mode: Reconcile
    kubernetes.io/cluster-service: "true"
  name: grafana
roleRef:
  apiGroup: rbac.authorization.k8s.io
  kind: ClusterRole
  name: grafana
subjects:
- kind: User
  name: k8s-node
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
[root@ceshi-132 grafana]# cat dp.yaml
apiVersion: extensions/v1beta1
kind: Deployment
metadata:
  labels:
    app: grafana
    name: grafana
  name: grafana
  namespace: infra
spec:
  progressDeadlineSeconds: 600
  replicas: 1
  revisionHistoryLimit: 7
  selector:
    matchLabels:
      name: grafana
  strategy:
    rollingUpdate:
      maxSurge: 1
      maxUnavailable: 1
    type: RollingUpdate
  template:
    metadata:
      labels:
        app: grafana
        name: grafana
    spec:
      containers:
      - name: grafana
        image: harbor.od.com/public/grafana:v5.4.2
        imagePullPolicy: IfNotPresent
        ports:
        - containerPort: 3000
          protocol: TCP
        volumeMounts:
        - mountPath: /var/lib/grafana
          name: data
      imagePullSecrets:
      - name: harbor
      securityContext:
        runAsUser: 0
      volumes:
      - nfs:
          server: 10.1.133.97
          path: /data/nfsvolume/grafana
        name: data

创建挂载目录

1
[root@ceshi-132 grafana]# mkdir /data/nfsvolume/grafana
1
2
3
4
5
6
7
8
9
10
11
12
13
[root@ceshi-132 grafana]# cat svc.yaml
apiVersion: v1
kind: Service
metadata:
  name: grafana
  namespace: infra
spec:
  ports:
  - port: 3000
    protocol: TCP
    targetPort: 3000
  selector:
    app: grafana
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
[root@ceshi-132 grafana]# cat ingress.yaml
apiVersion: extensions/v1beta1
kind: Ingress
metadata:
  name: grafana
  namespace: infra
spec:
  rules:
  - host: grafana.od.com		解析域名
    http:
      paths:
      - path: /
        backend:
          serviceName: grafana
          servicePort: 3000

交付

1
2
3
4
5
6
7
8
9
[root@ceshi-130 ~]# kubectl apply -f http://k8s-yaml.od.com/grafana/rbac.yaml
clusterrole.rbac.authorization.k8s.io/grafana created
clusterrolebinding.rbac.authorization.k8s.io/grafana created
[root@ceshi-130 ~]# kubectl apply -f http://k8s-yaml.od.com/grafana/dp.yaml
deployment.extensions/grafana created
[root@ceshi-130 ~]# kubectl apply -f http://k8s-yaml.od.com/grafana/svc.yaml
service/grafana created
[root@ceshi-130 ~]# kubectl apply -f http://k8s-yaml.od.com/grafana/ingress.yaml
ingress.extensions/grafana created

交付完成后用户密码默认admin/admin
安装grafana插件

1
2
3
4
5
6
[root@ceshi-130 ~]# kubectl exec -it grafana-5c6f59bcb7-9bc44 -n infra bash
root@grafana-5c6f59bcb7-9bc44:/usr/share/grafana# grafana-cli plugins install grafana-kubernetes-app
root@grafana-5c6f59bcb7-9bc44:/usr/share/grafana# grafana-cli plugins install grafana-clock-panel
root@grafana-5c6f59bcb7-9bc44:/usr/share/grafana# grafana-cli plugins install grafana-piechart-panel
root@grafana-5c6f59bcb7-9bc44:/usr/share/grafana# grafana-cli plugins install briangann-gauge-panel
root@grafana-5c6f59bcb7-9bc44:/usr/share/grafana# grafana-cli plugins install natel-discrete-panel

重启pod

1
2
[root@ceshi-131 ~]# kubectl delete pod grafana-5c6f59bcb7-9bc44 -n infra
pod "grafana-5c6f59bcb7-9bc44" deleted

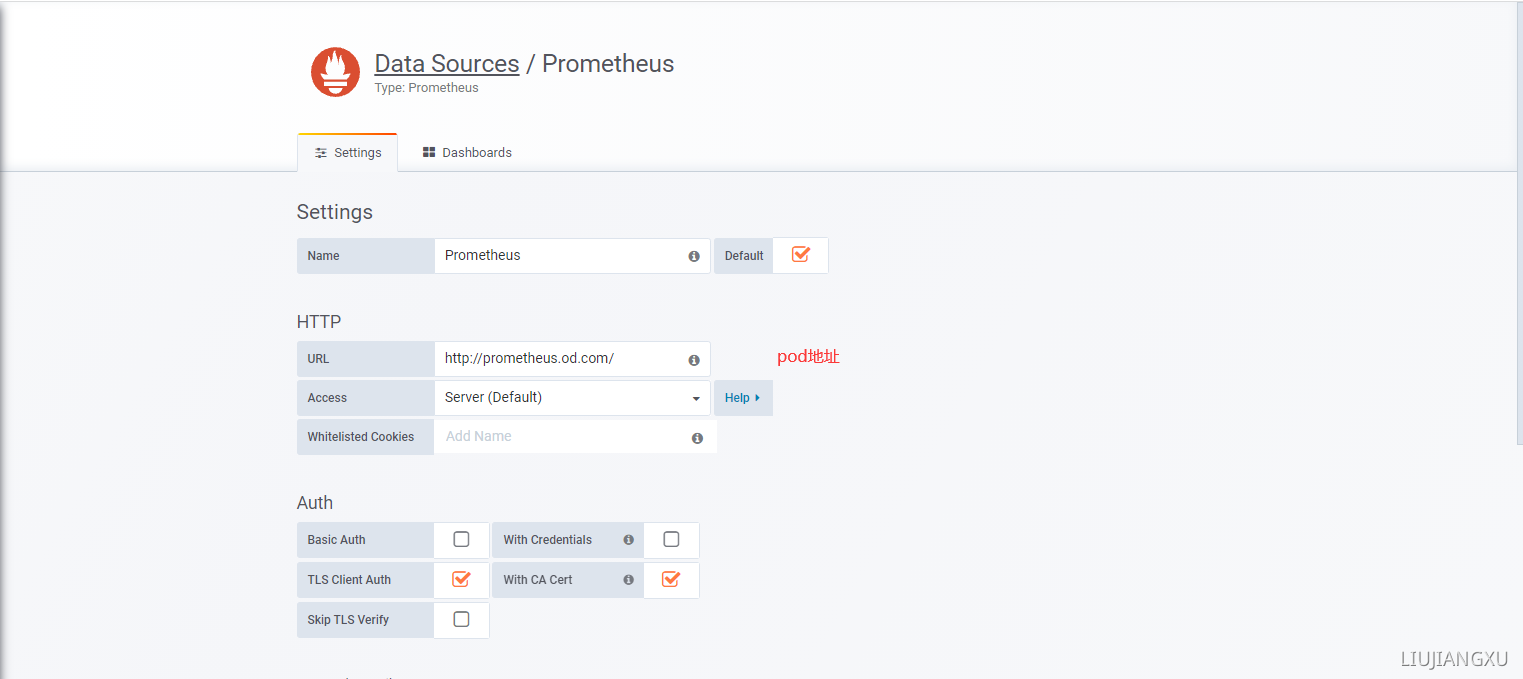

add data source –> Prometheus

upload successful
启动K8S插件，添加集群

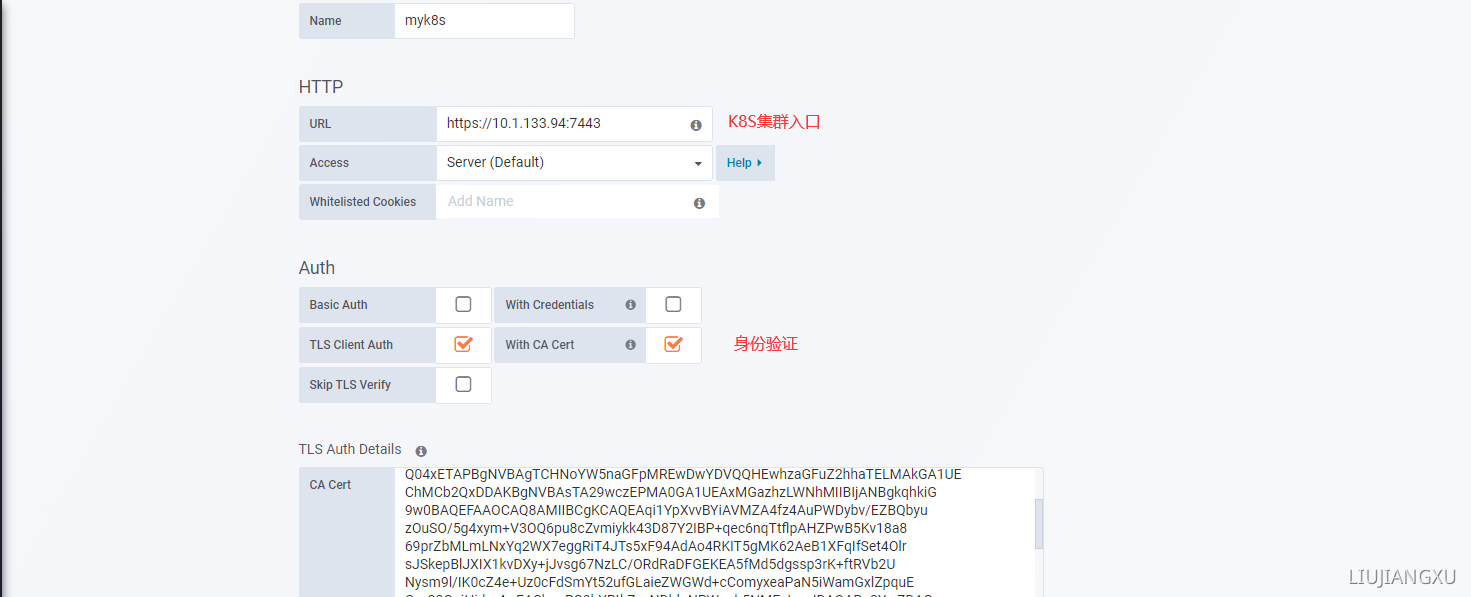

plugins –> kubernetes –> enable –> new cluster

upload successful

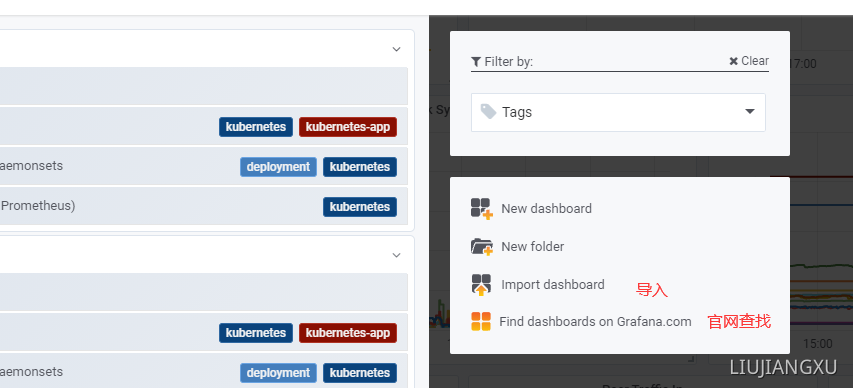

upload successful

alertmanager 告警插件

下载镜像

1
2
3
[root@ceshi-132 ~]# docker pull docker.io/prom/alertmanager:v0.14.0
[root@ceshi-132 ~]# docker tag 30594e96cbe8 harbor.od.com/public/alertmanager:v0.14.0
[root@ceshi-132 ~]# docker push harbor.od.com/public/alertmanager:v0.14.0

创建资源配置清单

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
[root@ceshi-132 alertmanager]# cat cm.yaml
apiVersion: v1
kind: ConfigMap
metadata:
  name: alertmanager-config
  namespace: infra
data:
  config.yml: |-
    global:
      # 在没有报警的情况下声明为已解决的时间
      resolve_timeout: 5m
      # 配置邮件发送信息
      smtp_smarthost: 'smtp.163.com:25'
      smtp_from: 'xxx@163.com'
      smtp_auth_username: 'xxxx@163.com'
      smtp_auth_password: 'xxxx'
      smtp_require_tls: false
    # 所有报警信息进入后的根路由，用来设置报警的分发策略
    route:
      # 这里的标签列表是接收到报警信息后的重新分组标签，例如，接收到的报警信息里面有许多具有 cluster=A 和 alertname=LatncyHigh 这样的标签的报警信息将会批量被聚合到一个分组里面
      group_by: ['alertname', 'cluster']
      # 当一个新的报警分组被创建后，需要等待至少group_wait时间来初始化通知，这种方式可以确保您能有足够的时间为同一分组来获取多个警报，然后一起触发这个报警信息。
      group_wait: 30s

      # 当第一个报警发送后，等待'group_interval'时间来发送新的一组报警信息。
      group_interval: 5m

      # 如果一个报警信息已经发送成功了，等待'repeat_interval'时间来重新发送他们
      repeat_interval: 5m

      # 默认的receiver：如果一个报警没有被一个route匹配，则发送给默认的接收器
      receiver: default

    receivers:
    - name: 'default'
      email_configs:
      - to: 'xxx.com'
        send_resolved: true
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
[root@ceshi-132 alertmanager]# cat dp.yaml
apiVersion: extensions/v1beta1
kind: Deployment
metadata:
  name: alertmanager
  namespace: infra
spec:
  replicas: 1
  selector:
    matchLabels:
      app: alertmanager
  template:
    metadata:
      labels:
        app: alertmanager
    spec:
      containers:
      - name: alertmanager
        image: harbor.od.com/public/alertmanager:v0.14.0
        args:
          - "--config.file=/etc/alertmanager/config.yml"
          - "--storage.path=/alertmanager"
        ports:
        - name: alertmanager
          containerPort: 9093
        volumeMounts:
        - name: alertmanager-cm
          mountPath: /etc/alertmanager
      volumes:
      - name: alertmanager-cm
        configMap:
          name: alertmanager-config
      imagePullSecrets:
      - name: harbor
1
2
3
4
5
6
7
8
9
10
11
12
[root@ceshi-132 alertmanager]# cat svc.yaml
apiVersion: v1
kind: Service
metadata:
  name: alertmanager
  namespace: infra
spec:
  selector:
    app: alertmanager
  ports:
    - port: 80
      targetPort: 9093

交付

1
2
3
4
5
6
7
8
[root@ceshi-130 ~]# kubectl apply -f http://k8s-yaml.od.com/dubbo-demo-service/dp.yaml
deployment.extensions/dubbo-demo-service created
[root@ceshi-130 ~]# kubectl apply -f http://k8s-yaml.od.com/alertmanager/cm.yaml
configmap/alertmanager-config created
[root@ceshi-130 ~]# kubectl apply -f http://k8s-yaml.od.com/alertmanager/dp.yaml
deployment.extensions/alertmanager created
[root@ceshi-130 ~]# kubectl apply -f http://k8s-yaml.od.com/alertmanager/svc.yaml
service/alertmanager created

报警规则

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
61
62
63
64
65
66
67
68
69
70
71
72
73
74
75
76
77
78
79
80
81
82
83
84
85
86
87
88
89
90
91
92
93
94
95
96
97
98
99
100
101
102
103
104
105
106
107
108
109
110
111
112
113
114
115
116
117
118
119
120
121
122
123
124
125
126
127
128
129
130
131
132
133
134
135
136
137
138
139
[root@ceshi-132 etc]# vi /data/nfsvolume/prometheus/etc/rules.yml
groups:
- name: hostStatsAlert
  rules:
  - alert: hostCpuUsageAlert
    expr: sum(avg without (cpu)(irate(node_cpu{mode!='idle'}[5m]))) by (instance) > 0.85
    for: 5m
    labels:
      severity: warning
    annotations:
      summary: "{{ $labels.instance }} CPU usage above 85% (current value: {{ $value }}%)"
  - alert: hostMemUsageAlert
    expr: (node_memory_MemTotal - node_memory_MemAvailable)/node_memory_MemTotal > 0.85
    for: 5m
    labels:
      severity: warning
    annotations:
      summary: "{{ $labels.instance }} MEM usage above 85% (current value: {{ $value }}%)"
  - alert: OutOfInodes
    expr: node_filesystem_free{fstype="overlay",mountpoint ="/"} / node_filesystem_size{fstype="overlay",mountpoint ="/"} * 100 < 10
    for: 5m
    labels:
      severity: warning
    annotations:
      summary: "Out of inodes (instance {{ $labels.instance }})"
      description: "Disk is almost running out of available inodes (< 10% left) (current value: {{ $value }})"
  - alert: OutOfDiskSpace
    expr: node_filesystem_free{fstype="overlay",mountpoint ="/rootfs"} / node_filesystem_size{fstype="overlay",mountpoint ="/rootfs"} * 100 < 10
    for: 5m
    labels:
      severity: warning
    annotations:
      summary: "Out of disk space (instance {{ $labels.instance }})"
      description: "Disk is almost full (< 10% left) (current value: {{ $value }})"
  - alert: UnusualNetworkThroughputIn
    expr: sum by (instance) (irate(node_network_receive_bytes[2m])) / 1024 / 1024 > 100
    for: 5m
    labels:
      severity: warning
    annotations:
      summary: "Unusual network throughput in (instance {{ $labels.instance }})"
      description: "Host network interfaces are probably receiving too much data (> 100 MB/s) (current value: {{ $value }})"
  - alert: UnusualNetworkThroughputOut
    expr: sum by (instance) (irate(node_network_transmit_bytes[2m])) / 1024 / 1024 > 100
    for: 5m
    labels:
      severity: warning
    annotations:
      summary: "Unusual network throughput out (instance {{ $labels.instance }})"
      description: "Host network interfaces are probably sending too much data (> 100 MB/s) (current value: {{ $value }})"
  - alert: UnusualDiskReadRate
    expr: sum by (instance) (irate(node_disk_bytes_read[2m])) / 1024 / 1024 > 50
    for: 5m
    labels:
      severity: warning
    annotations:
      summary: "Unusual disk read rate (instance {{ $labels.instance }})"
      description: "Disk is probably reading too much data (> 50 MB/s) (current value: {{ $value }})"
  - alert: UnusualDiskWriteRate
    expr: sum by (instance) (irate(node_disk_bytes_written[2m])) / 1024 / 1024 > 50
    for: 5m
    labels:
      severity: warning
    annotations:
      summary: "Unusual disk write rate (instance {{ $labels.instance }})"
      description: "Disk is probably writing too much data (> 50 MB/s) (current value: {{ $value }})"
  - alert: UnusualDiskReadLatency
    expr: rate(node_disk_read_time_ms[1m]) / rate(node_disk_reads_completed[1m]) > 100
    for: 5m
    labels:
      severity: warning
    annotations:
      summary: "Unusual disk read latency (instance {{ $labels.instance }})"
      description: "Disk latency is growing (read operations > 100ms) (current value: {{ $value }})"
  - alert: UnusualDiskWriteLatency
    expr: rate(node_disk_write_time_ms[1m]) / rate(node_disk_writes_completedl[1m]) > 100
    for: 5m
    labels:
      severity: warning
    annotations:
      summary: "Unusual disk write latency (instance {{ $labels.instance }})"
      description: "Disk latency is growing (write operations > 100ms) (current value: {{ $value }})"
- name: http_status
  rules:
  - alert: ProbeFailed
    expr: probe_success == 0
    for: 1m
    labels:
      severity: error
    annotations:
      summary: "Probe failed (instance {{ $labels.instance }})"
      description: "Probe failed (current value: {{ $value }})"
  - alert: StatusCode
    expr: probe_http_status_code <= 199 OR probe_http_status_code >= 400
    for: 1m
    labels:
      severity: error
    annotations:
      summary: "Status Code (instance {{ $labels.instance }})"
      description: "HTTP status code is not 200-399 (current value: {{ $value }})"
  - alert: SslCertificateWillExpireSoon
    expr: probe_ssl_earliest_cert_expiry - time() < 86400 * 30
    for: 5m
    labels:
      severity: warning
    annotations:
      summary: "SSL certificate will expire soon (instance {{ $labels.instance }})"
      description: "SSL certificate expires in 30 days (current value: {{ $value }})"
  - alert: SslCertificateHasExpired
    expr: probe_ssl_earliest_cert_expiry - time()  <= 0
    for: 5m
    labels:
      severity: error
    annotations:
      summary: "SSL certificate has expired (instance {{ $labels.instance }})"
      description: "SSL certificate has expired already (current value: {{ $value }})"
  - alert: BlackboxSlowPing
    expr: probe_icmp_duration_seconds > 2
    for: 5m
    labels:
      severity: warning
    annotations:
      summary: "Blackbox slow ping (instance {{ $labels.instance }})"
      description: "Blackbox ping took more than 2s (current value: {{ $value }})"
  - alert: BlackboxSlowRequests
    expr: probe_http_duration_seconds > 2
    for: 5m
    labels:
      severity: warning
    annotations:
      summary: "Blackbox slow requests (instance {{ $labels.instance }})"
      description: "Blackbox request took more than 2s (current value: {{ $value }})"
  - alert: PodCpuUsagePercent
    expr: sum(sum(label_replace(irate(container_cpu_usage_seconds_total[1m]),"pod","$1","container_label_io_kubernetes_pod_name", "(.*)"))by(pod) / on(pod) group_right kube_pod_container_resource_limits_cpu_cores *100 )by(container,namespace,node,pod,severity) > 80
    for: 5m
    labels:
      severity: warning
    annotations:
      summary: "Pod cpu usage percent has exceeded 80% (current value: {{ $value }}%)"

配置prometheus文件，重启

1
2
3
4
5
6
7
[root@ceshi-132 etc]# vi /data/nfsvolume/prometheus/etc/prometheus.yml
alerting:
  alertmanagers:
    - static_configs:
        - targets: ["alertmanager"]
rule_files:
 - "/data/etc/rules.yml"

平滑重新加载配置，因为有的服务太庞大，停止再重启容易拖垮整个集群

1
[root@ceshi-130 ~]# kill -SIGHUP 113990

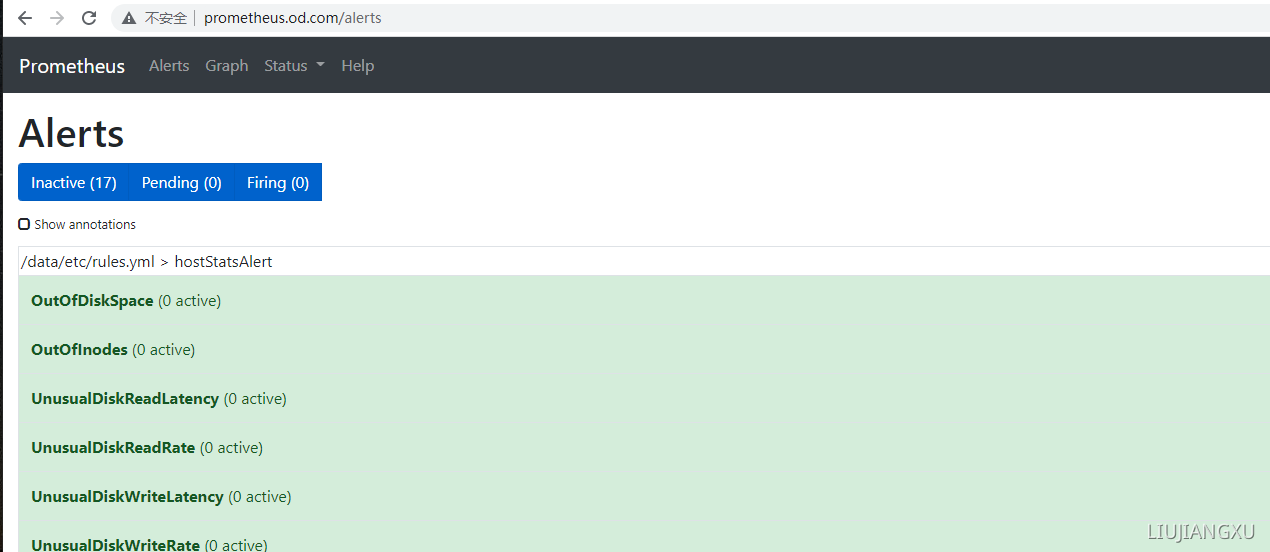

upload successful
